2017-P Ozark Riverways Quarter Die Varieties
Doubled Die Obverses
| Designation | Description | Image |
|---|---|---|
| SDDO-001 | Strong separation and notching as well as slight extra thickness on QUARTER DOLLAR, LIBERTY, IGWT, UNITED, AMERICA, and the mintmark. Cross-References: WDDO-001 Die Markers: Obverse: None known. Reverse: None known. |  |
Doubled Die Reverses
| Designation | Description | Image |
|---|---|---|

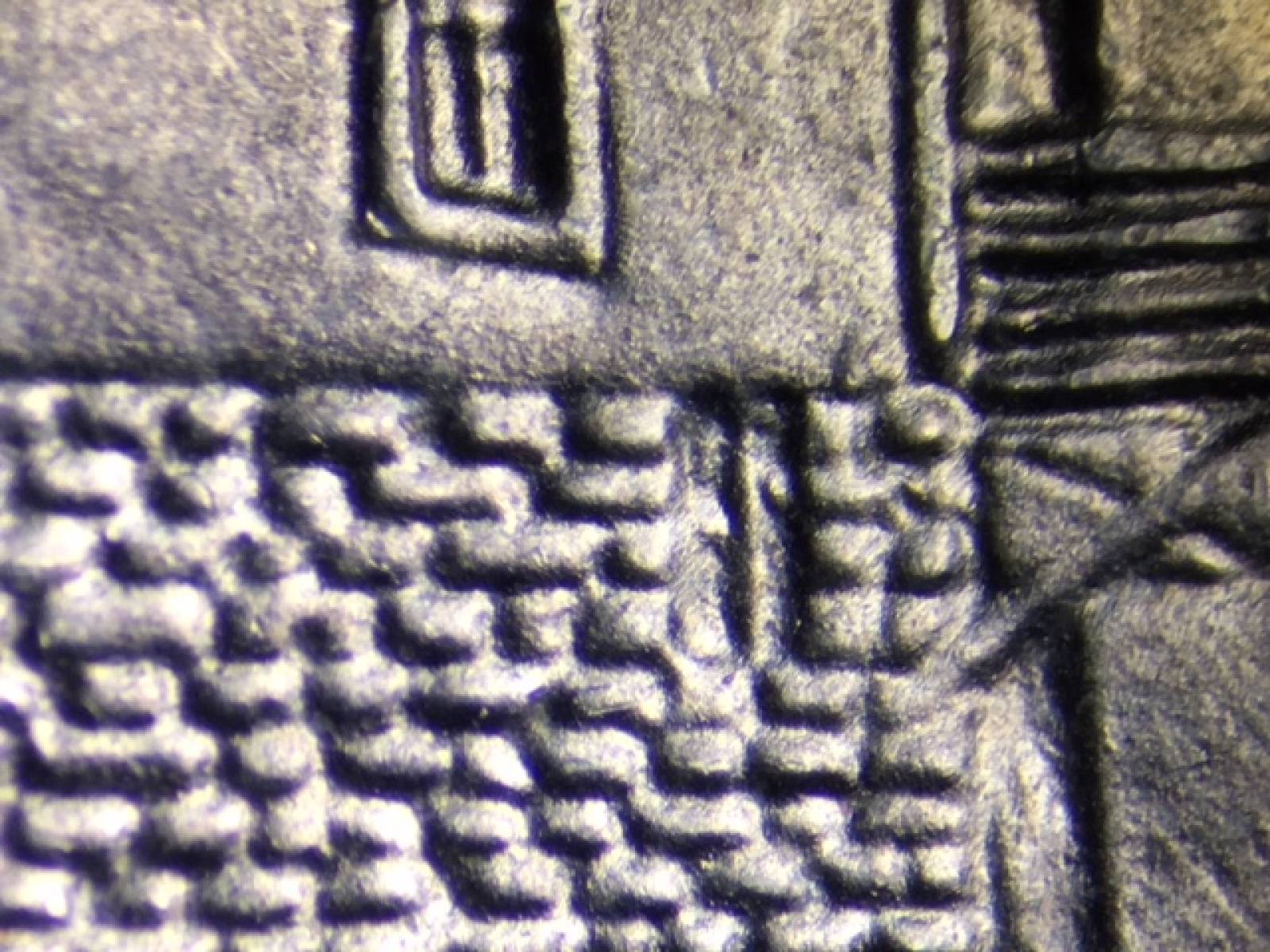

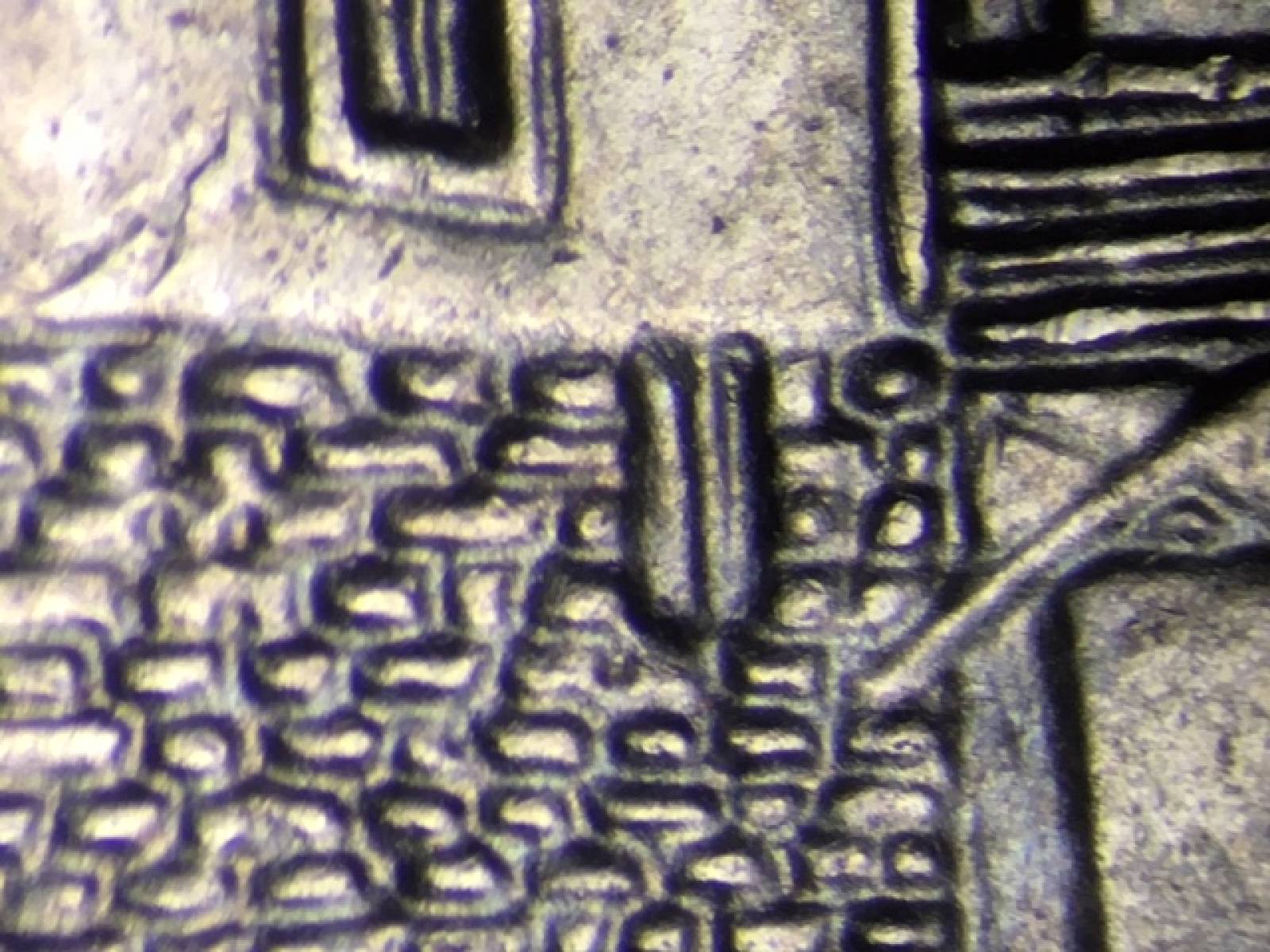

| SDDR-001 | Doubling at the top of the cellar window. Very similar to SDDR-015, compare doubling and die markers. Cross-References: WDDR-001 Die Markers: Obverse: Die chip on the base of the bust above the second R in QUARTER. Reverse: None known. |  |
| Designation | Description | Image |

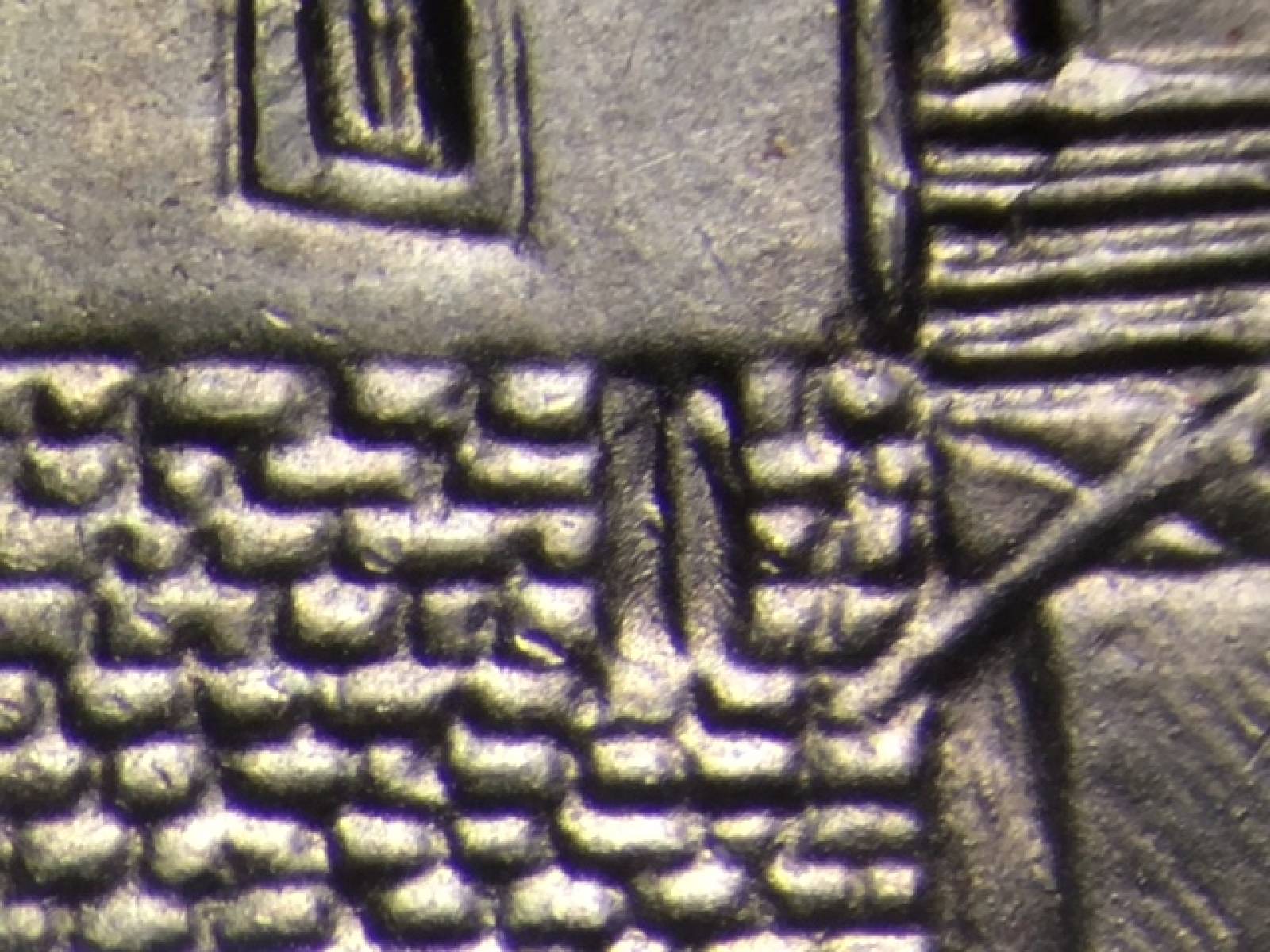

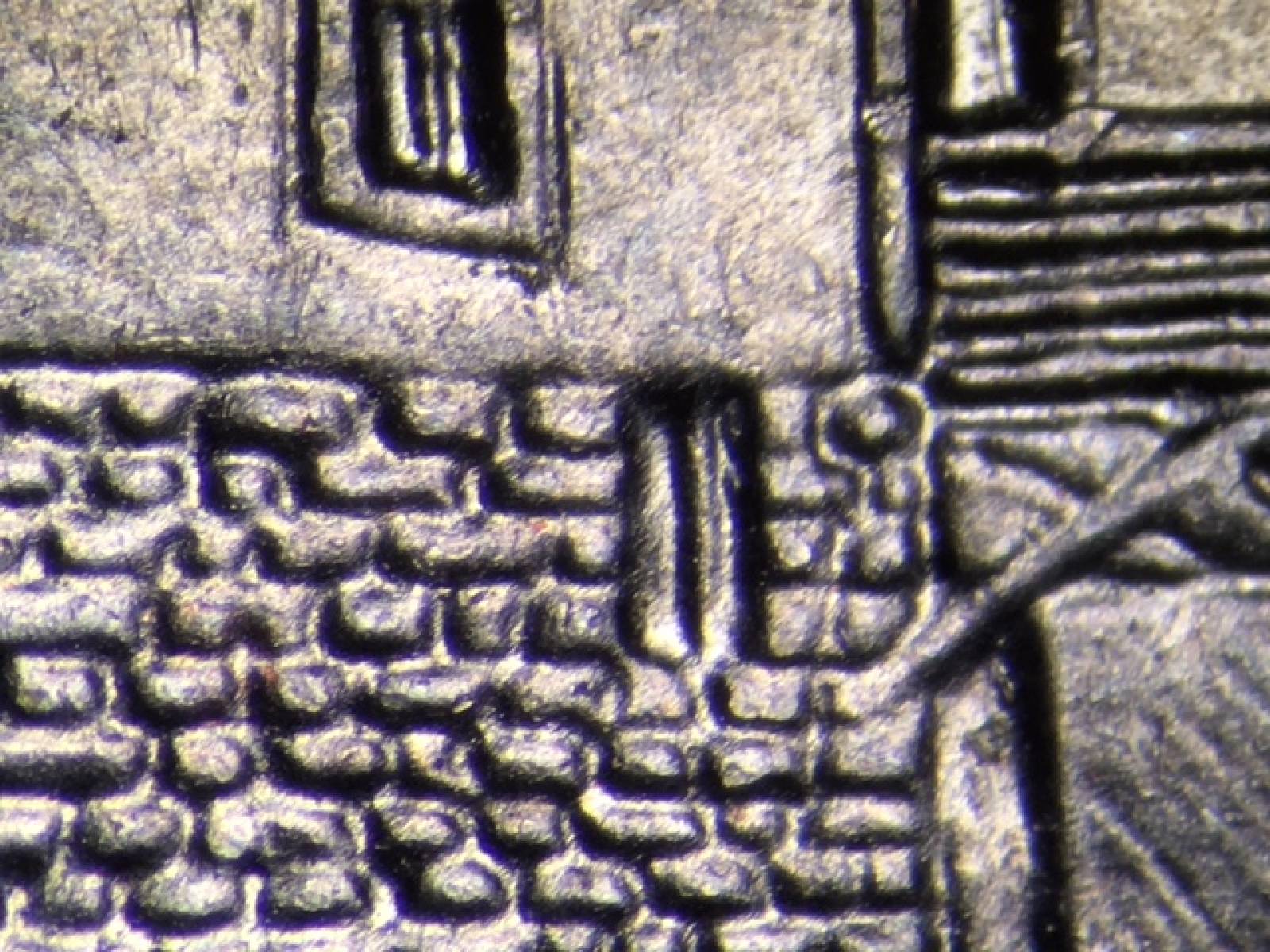

| SDDR-002 | Doubling of at least 4 stones within the cellar window. Cross-References: WDDR-005 Die Markers: Obverse: Stage A: Die gouge between the E and R in AMERICA. Stage B: Stage A marker still present. Two die gouges between the I and T in UNITED. Two die gouges inside the upper right of the O in DOLLAR. Die gouge to the right of the first L in DOLLAR. A die crack runs along the base of the bust with a die chip above the E in QUARTER. Reverse: Stage A: Die gouge between the tree branch above the building and the trees in the background. Stage B: Same as Stage A. |  |
| Designation | Description | Image |

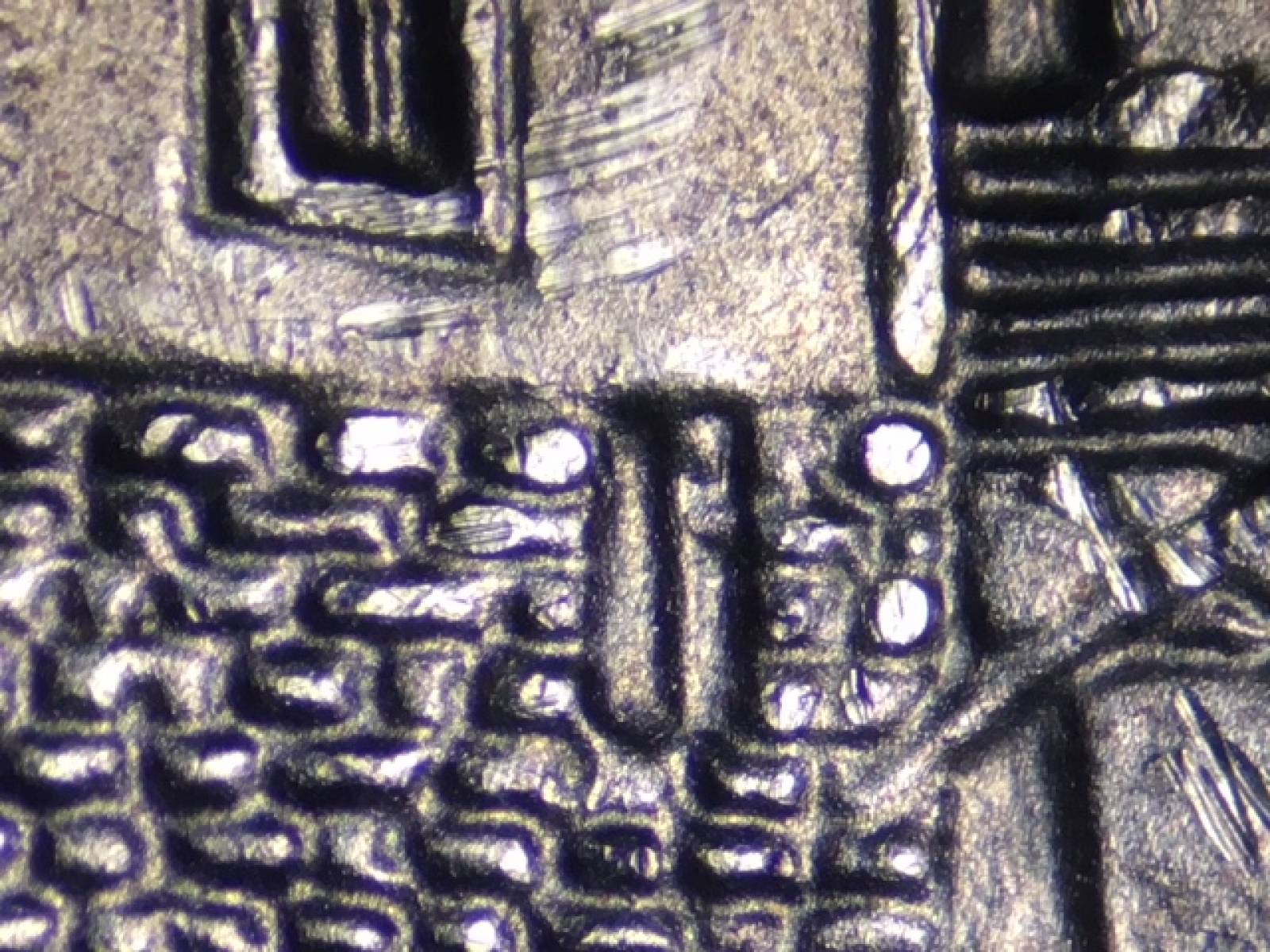

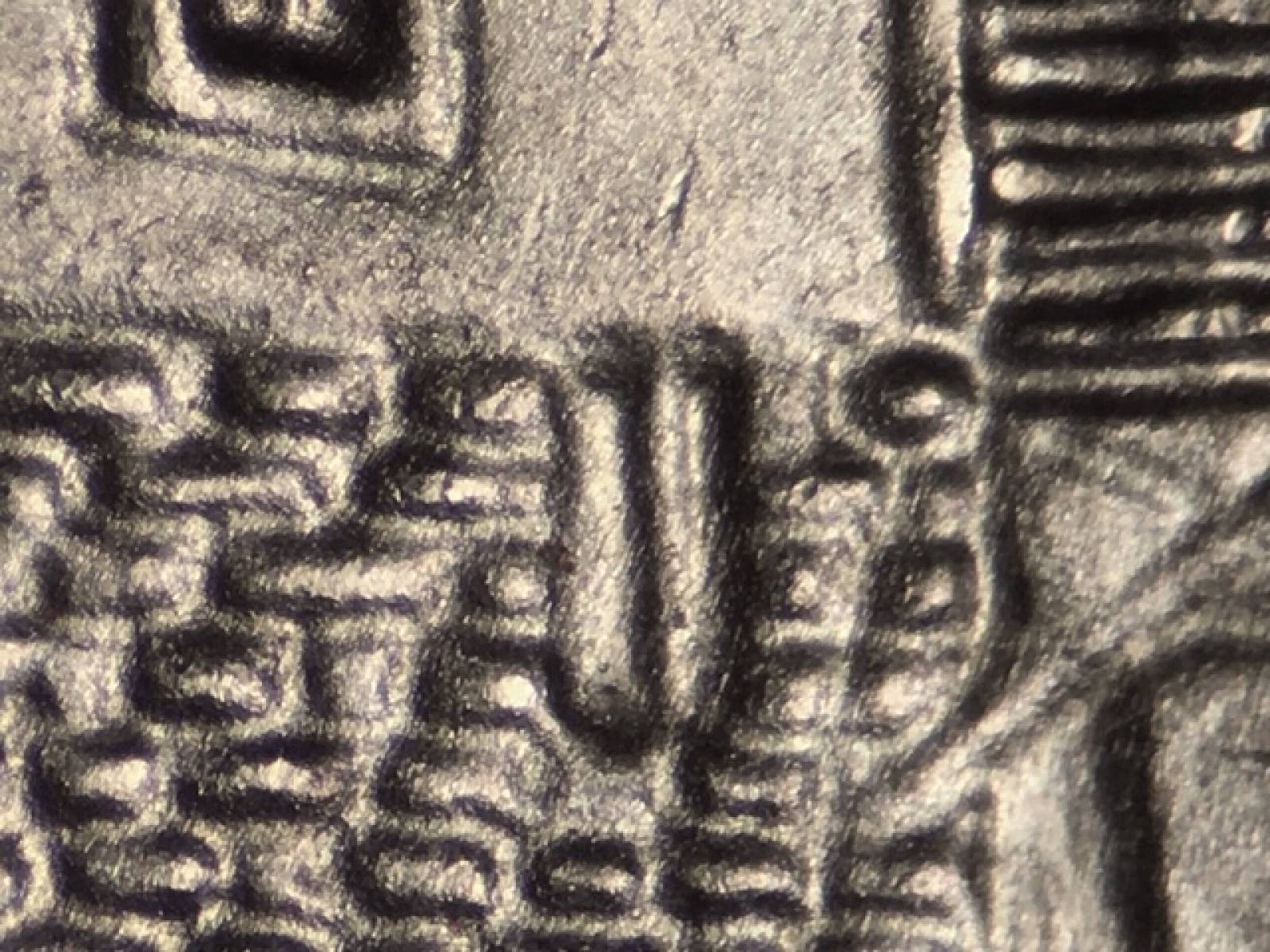

| SDDR-003 | Doubling of 2 stones in the upper left of the cellar window. Cross-References: WDDR-002 Die Markers: Obverse: Stage A: Die gouge touches the top of the C in AMERICA. Stage B: Same as Stage A. Reverse: Stage A: Die crack follows the crook of the two tree branches below the S in RIVERWAYS. Stage B: The die crack developed into a die chip. |  |
| Designation | Description | Image |

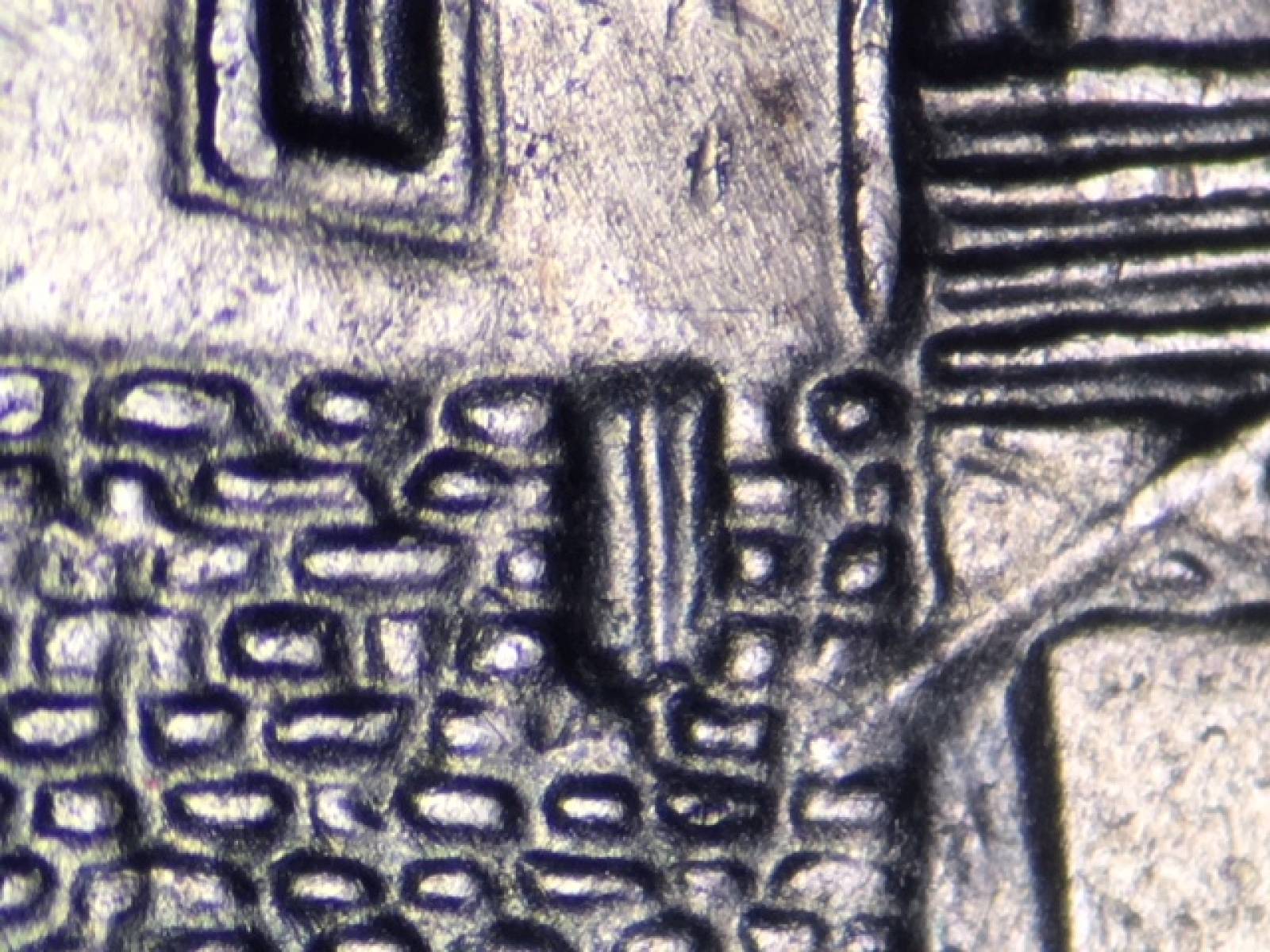

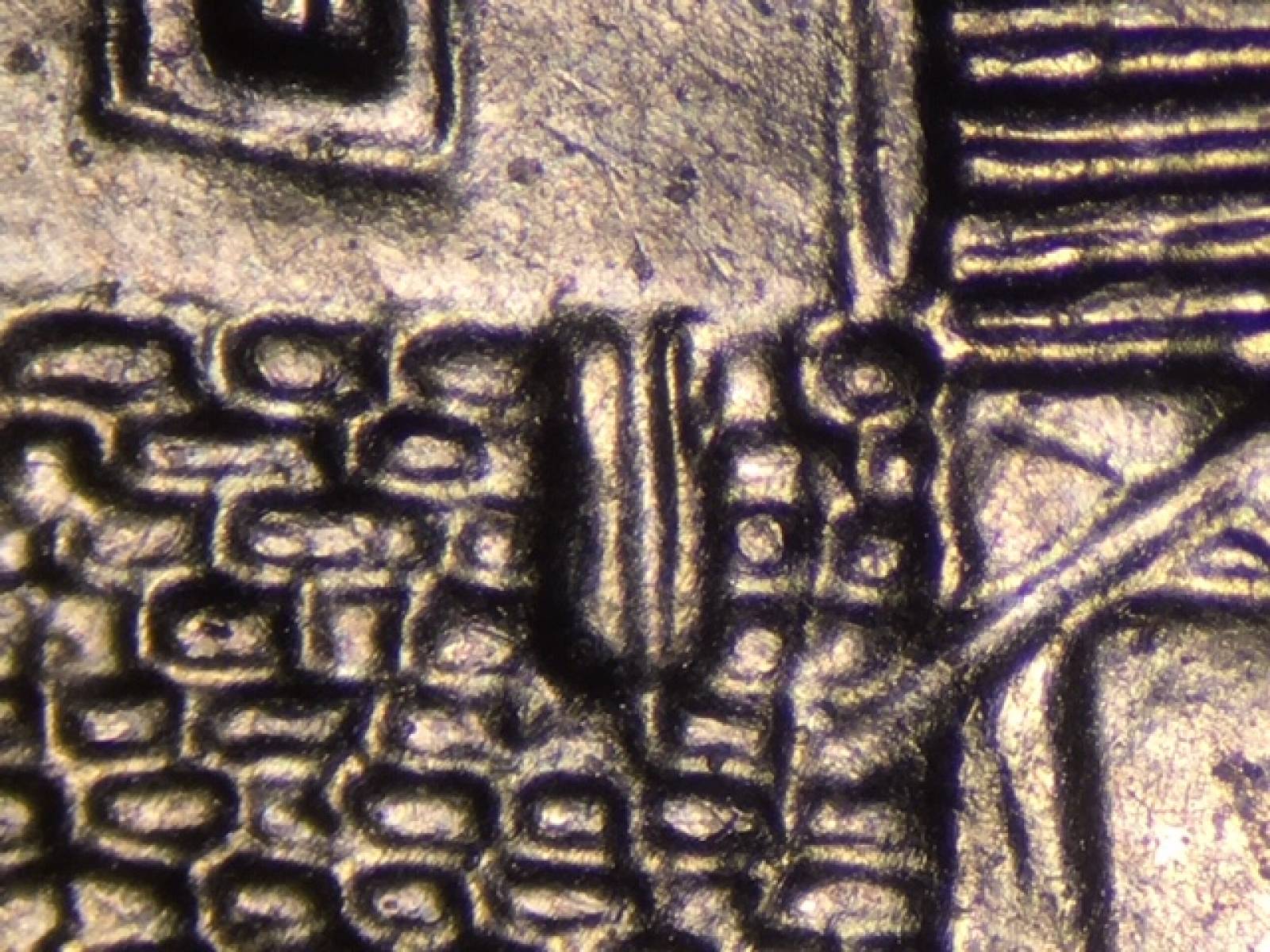

| SDDR-004 | Doubling of a stone in the upper right of the cellar window. Cross-References: WDDR-003 Die Markers: Obverse: Die gouge above the T in QUARTER. Reverse: Die gouge between the tree branch and the K in OZARK. Multiple pre-die break depressions in the tree branches below RIVERWAYS. |  |
| Designation | Description | Image |

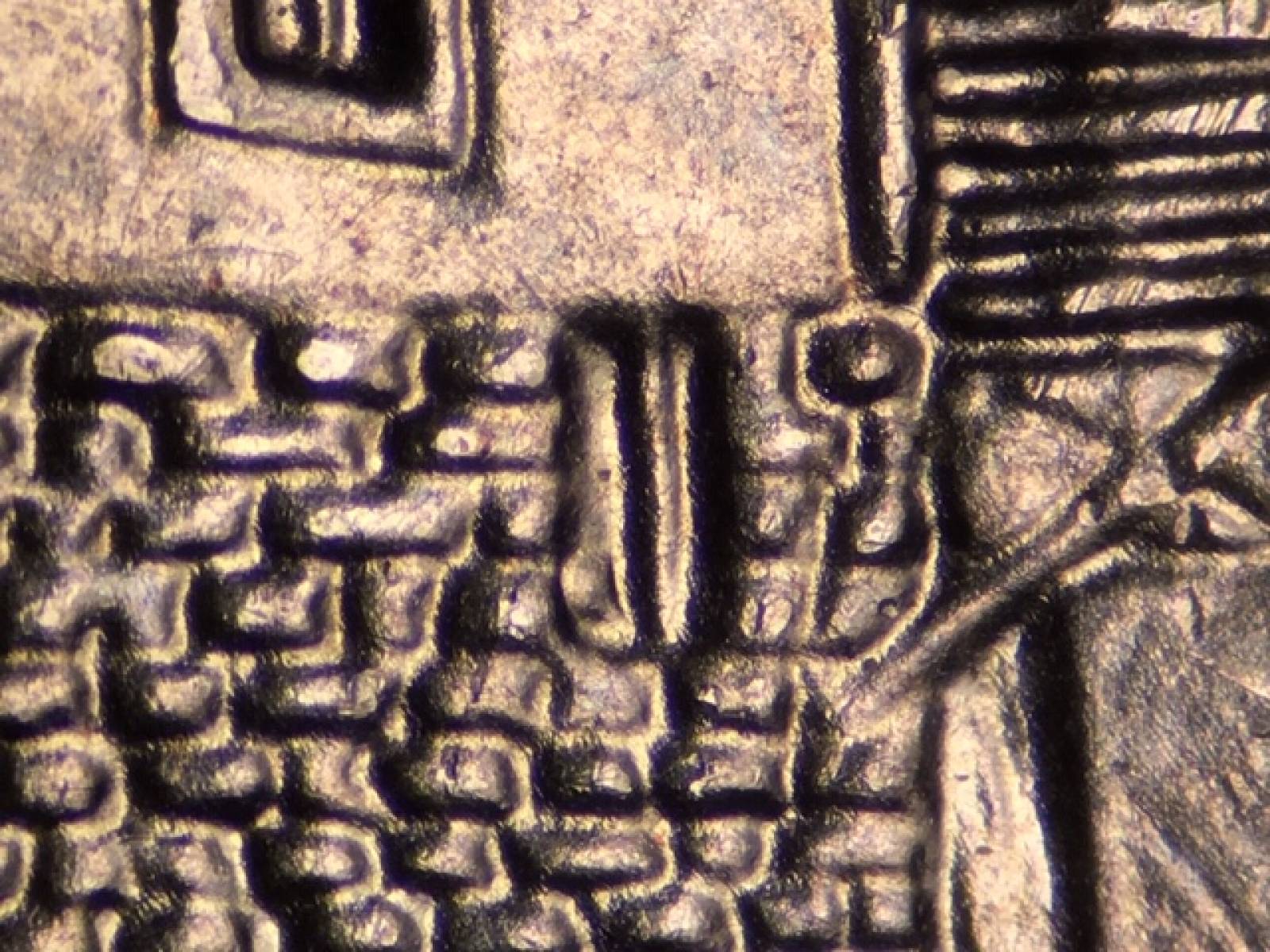

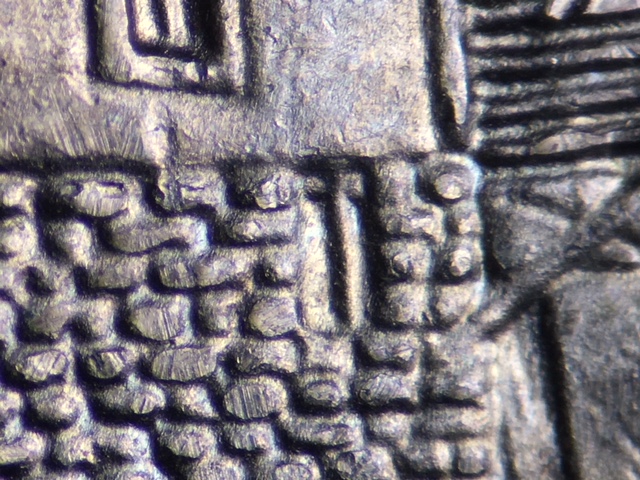

| SDDR-005 | Doubling of the top of the cellar window and two stones in the upper right of the window. Die Markers: Obverse: Die chip on the bottom of the bust above the second R in QUARTER and the D in DOLLAR. Die gouge inside of the D in GOD. Two die gouges between the F in OF and the first A in AMERICA. Reverse: Die chip inside the top of the R in the designer's initials RG. |  |
| Designation | Description | Image |

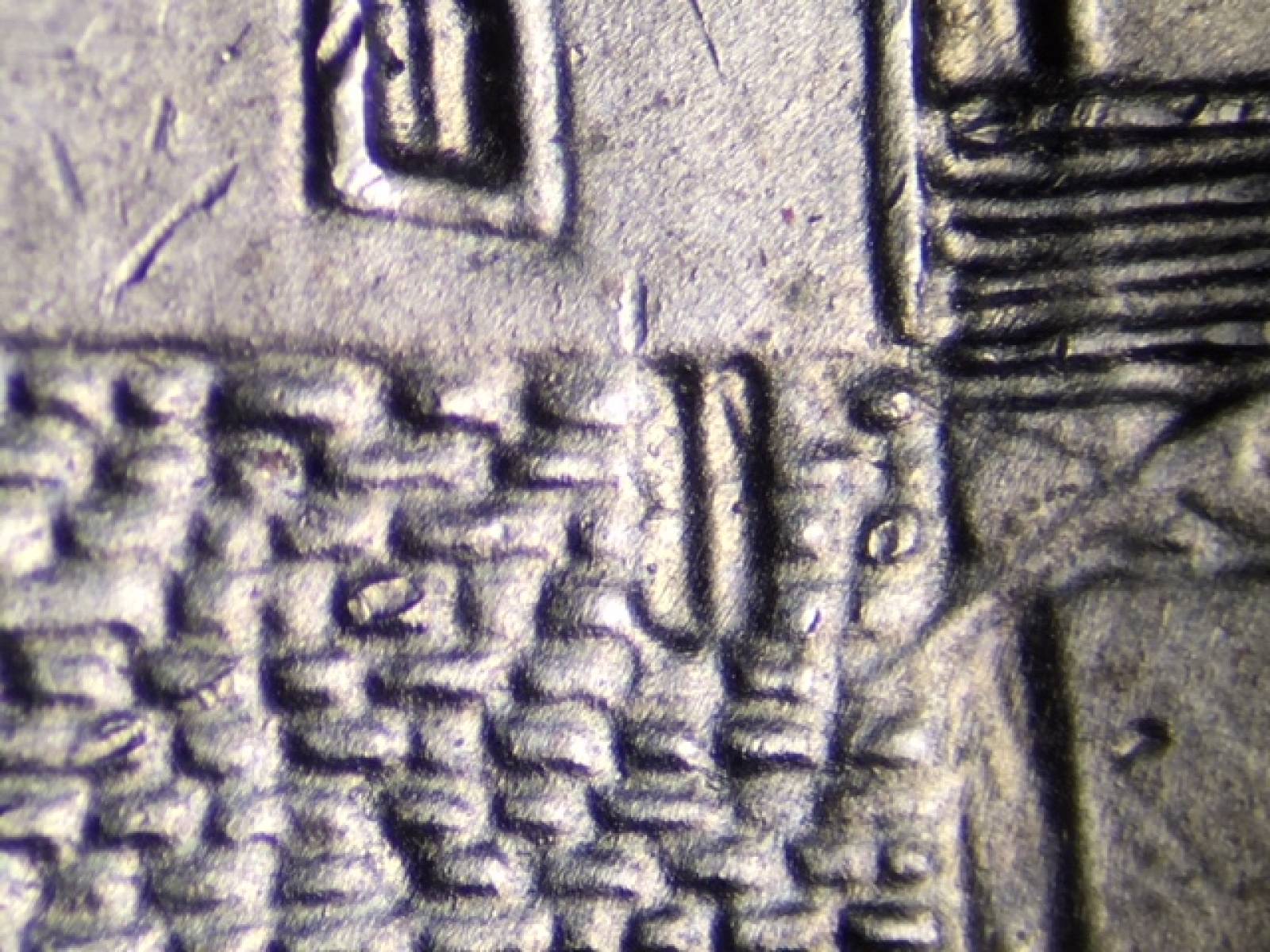

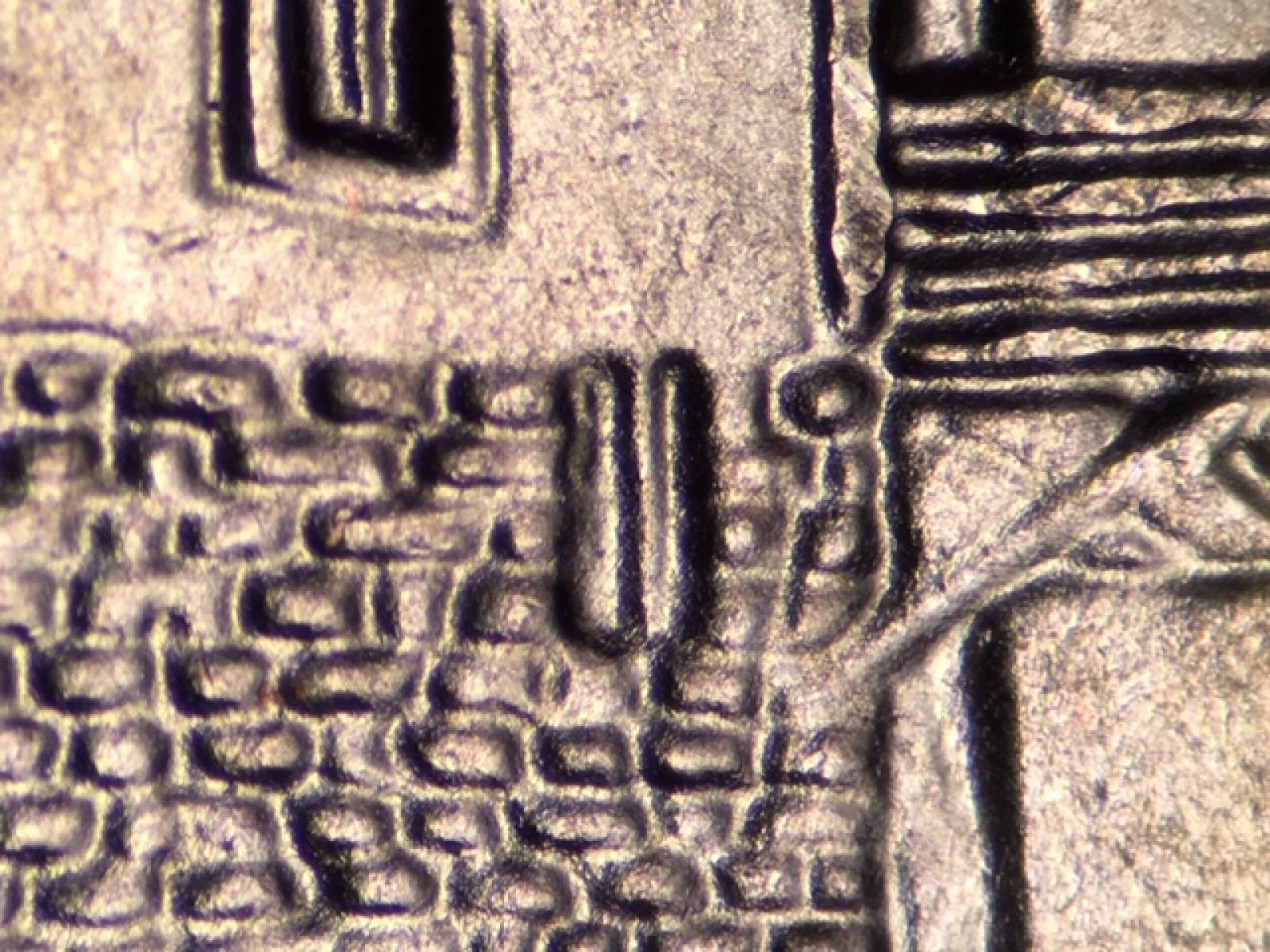

| SDDR-006 | Doubling along the right side of the cellar window. Die Markers: Obverse: Die chip on the bottom of the bust above the second ER in QUARTER. Reverse: Large die chip in the tree branches below RIVERWAYS. |  |
| Designation | Description | Image |

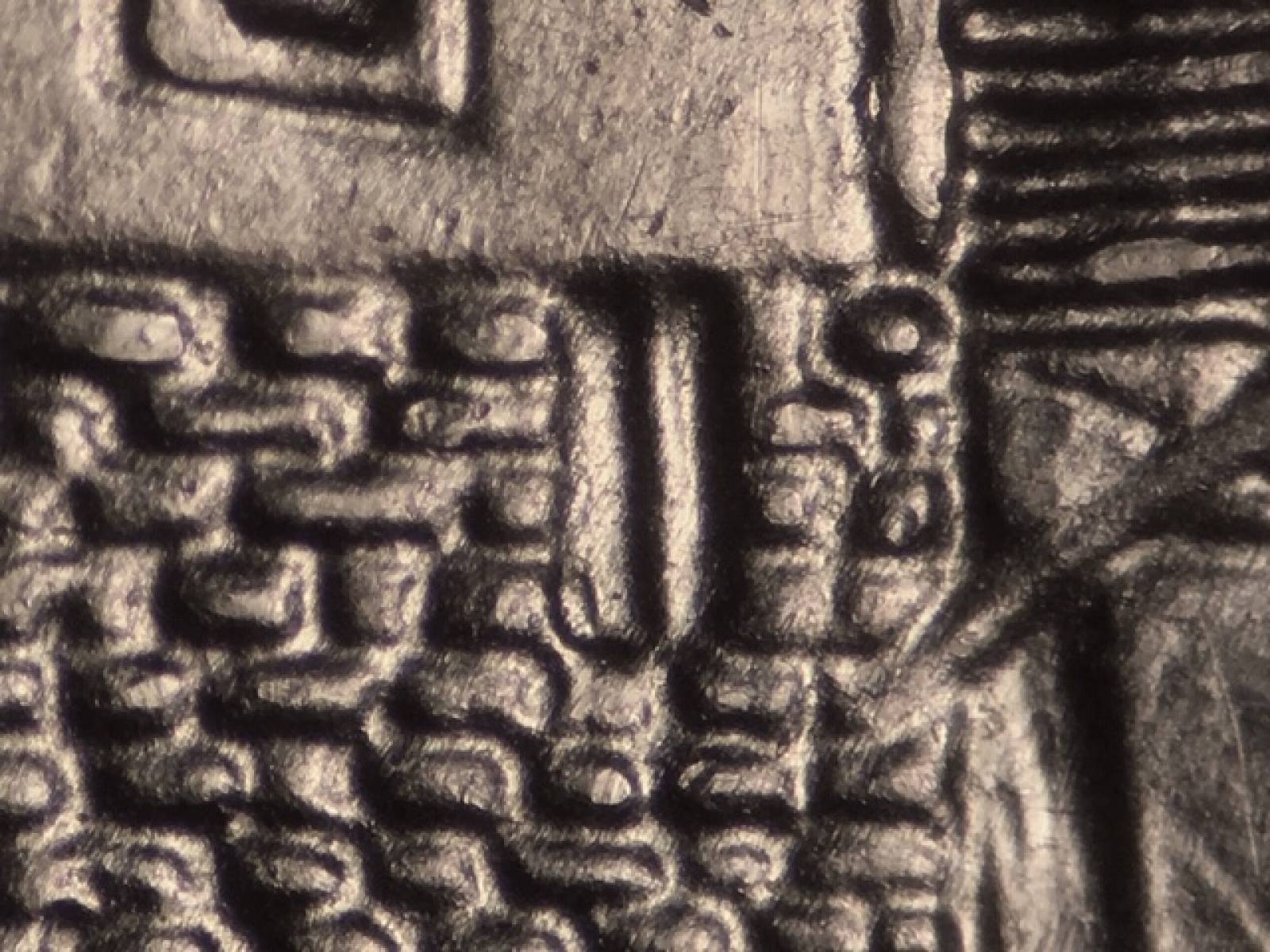

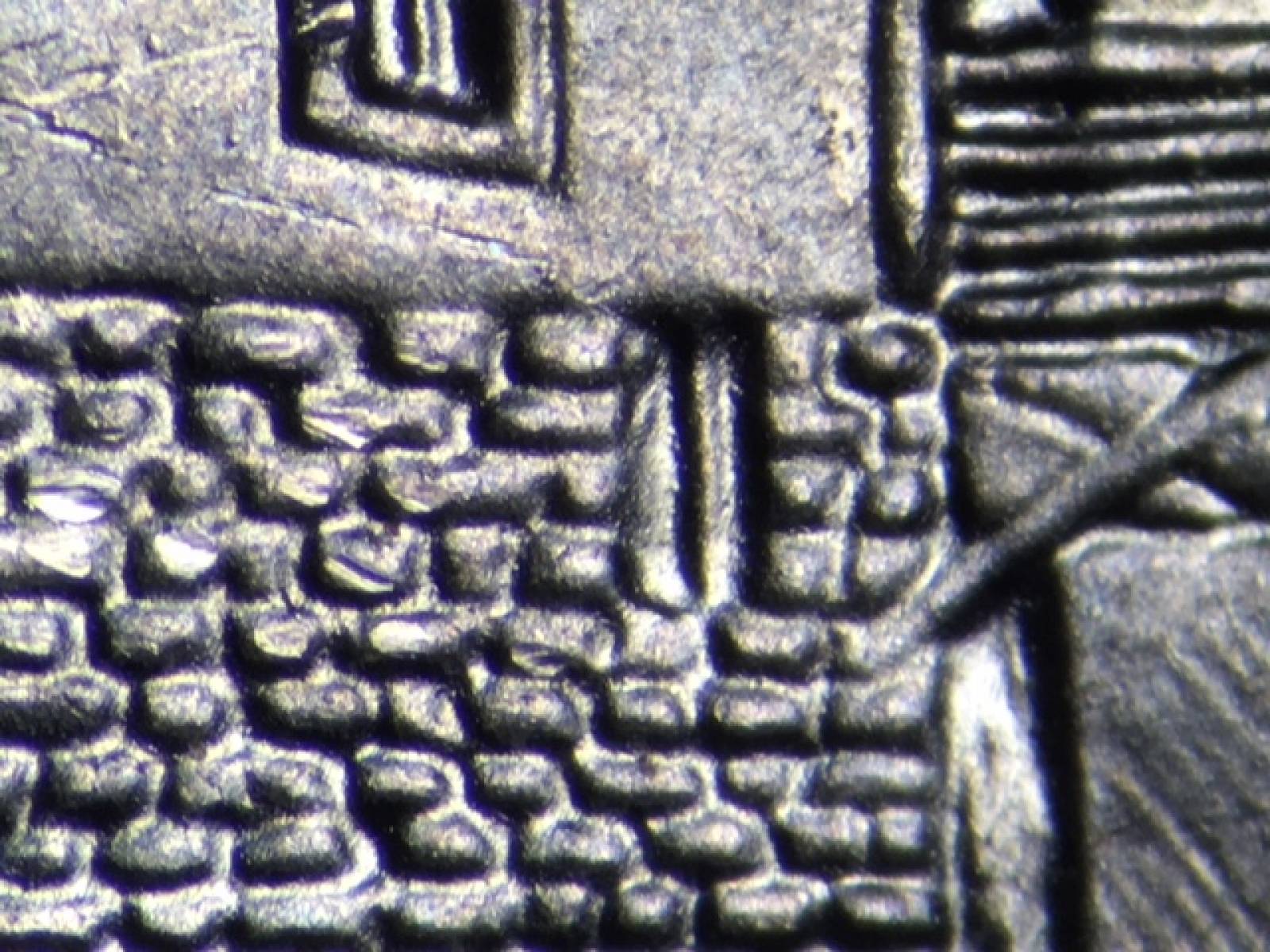

| SDDR-007 | Doubling of 2 stones in the upper right of the cellar window. Die Markers: Obverse: Die gouge touches the rim to the right of the C in AMERICA. Reverse: None known. |  |
| Designation | Description | Image |

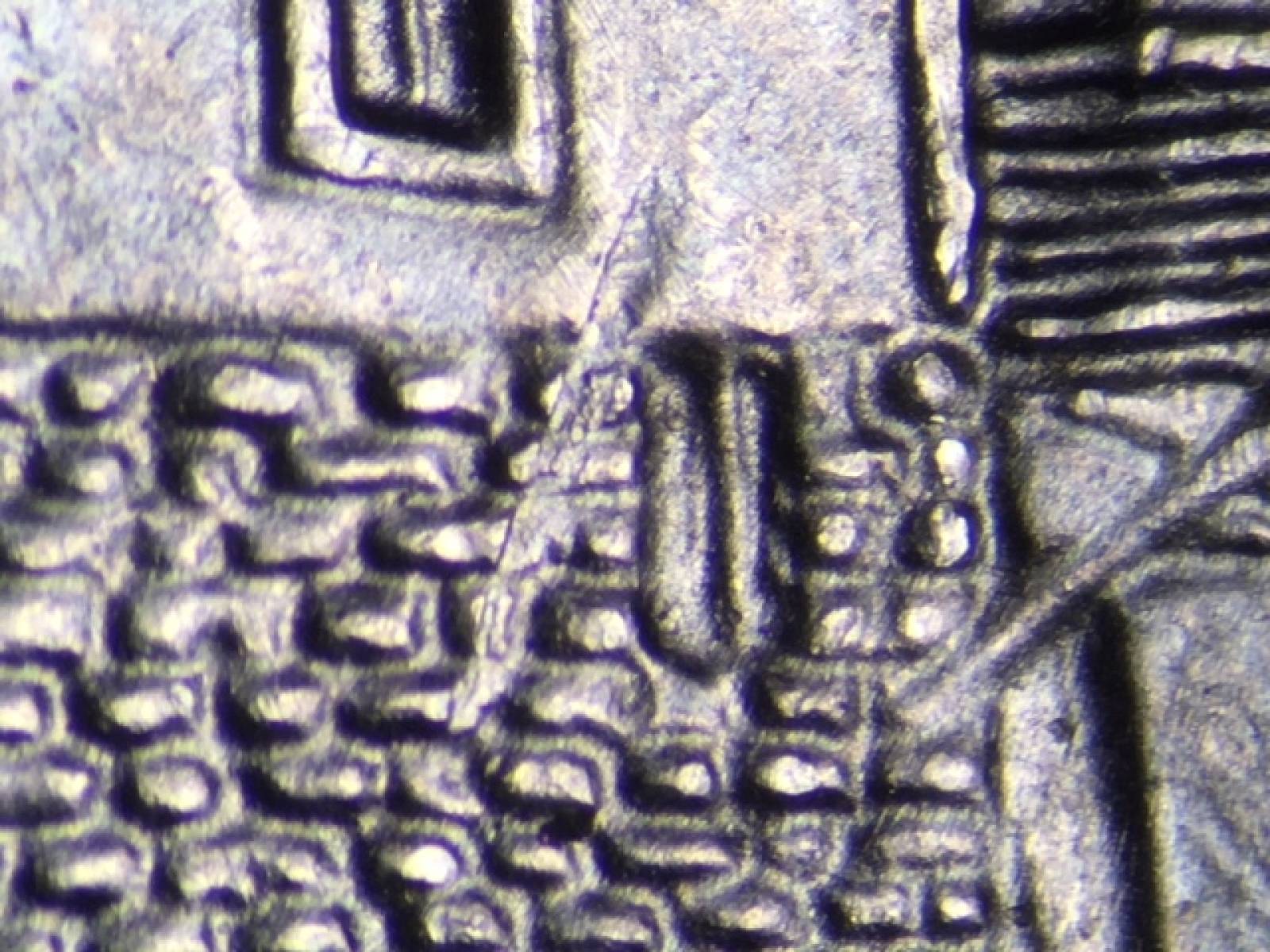

| SDDR-008 | Doubling at the top right of the cellar window. Die Markers: Obverse: Die dent along the rim between the D in UNITED and the first S in STATES. Reverse: Two die gouges to the right of the lowest tree branch below RIVERWAYS. |  |
| Designation | Description | Image |
| SDDR-009 | Doubling of 2 stones in the upper right of the cellar window. Cross-References: WDDR-004 Die Markers: Obverse: Die chips on the base of the bust above the D in DOLLAR. Light NE-SW die scratches in and below the ear. Reverse: Die chip in the tree below the S in RIVERWAYS. |  |
| Designation | Description | Image |
| SDDR-010 | Doubling of 2 stones on the bottom of the cellar window and 2 stones on the right side of the cellar window. Die Markers: Obverse: Die gouge below the second R in QUARTER. Reverse: None known. |  |
| Designation | Description | Image |
| SDDR-011 | Doubling of a stone in the bottom left of the cellar window. Die Markers: Obverse: NNW-SSE die scratches through LIBERTY. Reverse: Die gouge between the tree branches below the R in RIVERWAYS. |  |
| Designation | Description | Image |
| SDDR-012 | Doubling of 2 stones in the upper left of the cellar window. Die Markers: Obverse: Very short and thin die crack on the bust above the E in QUARTER with two pre-die break depressions. Die gouge nearly touches the top of the A in QUARTER. Reverse: Die gouge between the tree branches below the R in RIVERWAYS. |  |
| Designation | Description | Image |
| SDDR-013 | Doubling of 1.5 stones in the bottom left of the cellar window. Cross-References: WDDR-006 Die Markers: Obverse: Die gouge just left of the Q in QUARTER. Die gouge right of the A in QUARTER. Die gouge left of the T in QUARTER. Reverse: None known. |  |
| Designation | Description | Image |
| SDDR-014 | Doubling of 2 stones in the upper right of the cellar window. Die Markers: Obverse: N-S die scratches to the right of the L in LIBERTY. Reverse: None known. |  |
| Designation | Description | Image |
| SDDR-015 | Doubling at the top of the cellar window. Very similar to SDDR-001, compare doubling and die markers. Die Markers: Obverse: Die crack runs along the bottom of the bust with a retained die break above the T in QUARTER. Many thin N-S die scratches and abrasion around the center of the design, likely from attempts to remove a die clash. Die gouge below the G in GOD. Die gouge southwest of the G in GOD. Die gouge to the right of the A in QUARTER. Die gouge to the left of the bottom of the U in TRUST. Reverse: Die gouge near the branches below the A in RIVERWAYS. Die gouge to the left of the second window above the cellar window. |  |
